Borong Galas Gelek silinder Baris Tunggal Pembekal, Kilang - Shaoxing Shangyu Flight Seiko Machinery Co., Ltd.

SEBELUM:Galas Penggelek Silinder Tanpa Lingkaran Luar

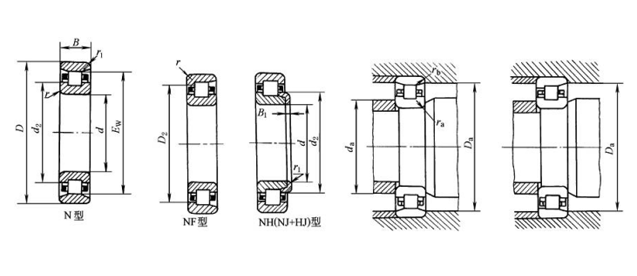

Melukis

Spesifikasi

inci kaki asas / mm									Kadar beban asas /kN						Hadkan kelajuan /r·min-1					Jisim / kg				Kod galas									Saiz lain/mm															Saiz pemasangan / mm
d			D			B			Cr			C0r			gemuk		minyak			W≈				jenis-n		jenis NF				NHOT Jenis NH (NJ HJ))			EW		d2				D2	B1		r min			r1 min			da maks		Da maks			ra maks			rb maks
15			35			11			7. 93			5. 5			15000		19000			—				N202		NF202				—			29.3		22				26.4	—		0.6			0.3			19		—			0.6			0.3
17			40			12			9.12			7.0			14000		18000			—				N203		NF203				—			33.9		25.5				30.9	—		0.6			0.3			21		—			0.6			0.3
20			42			12			10.5			8.0			13000		17000			0. 09				N1004		—				—			36.5		28.3				—	—		0.6			0.3			24		—			0.6			0.3
			47			14			12.5			11.0			12000		16000			0.11				—		NF204				NJ 204 HJ 204			40		29.9				36.7	3		1			0.6			25		42			1			0.6
			47			14			25.3			24.0			12000		16000			0.117				N204E		—				—			41.5		29.7				—	—		1			0.6			25		42			1			0.6
			47			18			30.8			30.0			12000		16000			0.149				N2004E		—				—			41.5		29.7				—	—		1			0.6			25		42			1			0.6
			52			15			18.0			15.0			11000		15000			0.17				—		NF304				NJ 304 HJ 304			44.5		31.8				39.8	4		1.1			0.6			26.5		47			1			0.6
			52			15			29.0			25.5			11000		15000			0.155				M 304 E		—				—			45.5		31.2				—	—		1.1			0.6			26.5		47			1			0.6
			52			21			39.2			37.5			10000		14000			0.216				N 2304 E		—				—			45.5		31.2				—	—		1.1			0.6			26.5		47			1			0.6
25			47			12			11.0			10.2			11000		15000			0.1				N 1005 E		—				—			41.5		—				—	—		0.6			0.3			29		—			0.6			0.3
			52			15			14.2			12.8			11000		14000			0.16				—		NF205				NJ 205 HJ 205			45		34.9				41.6	3		1			0.6			30		47			1			0.6
			52			15			27.5			26.3			11000		14000			0.14				N205E		—				—			46.5		34.7				—	—		1			0.6			30		47			1			0.6
			52			18			21.2			19.8			11000		14000			—				—		—				NJ 2205 HJ 2205			—		34.9				41.6	3		1			0.6			30		—			1			0.6
			52			18			32.8			33.8			11000		14000			0.163				N 2205 E		—				—			46.5		34.7				—	—		1			0.6			30		47			1			0.6
			62			17			25.5			22.5			9000		12000			0.2				—		NF305				NJ 305 HJ 305			53		39				48	4		1.1			1.1			31.5		55			1			1
			62			17			38.5			35.8			9000		12000			0.251				N305 E		—				—			54		38.1				—	—		1.1			1.1			31.5		55			1			1
			62			24			38.5			39.2			9000		12000			—				—		NF2305				—			53		39				48	—		1.1			1.1			31.5		55			1			1
			62			24			53.2			54.5			9000		12000			0.355				N2305E		—				—			54		38.1					—		1.1			1.1			31.5		55			1			1
30	62			16			19.5			18.2			8500			11000					0.2	—					NF206	NJ 206 HJ 206			53.5					41.8	49.1			4	1			0.6		36					56			1		0.6
	62			16			36.0			35.5			8500			11000					0.214	N206E					—	—			55. 5					41.3	—			—	1			0.6		36					56			1		0.6
	62			20			28.3			30.2			8500			11000					0. 29	—					—	HJ 2206 HJ 2206			—					41.8	49.1			4	1			0.6		36					—			1		0.6
	62			20			45.5			48.0			8500			11000					0. 268	N 2206 E					—	—			55. 5					41.3	—			—	1			0.6		36					56			1		0.6
	72			19			33.5			31.5			8000			10000					0.3	—					NF306	NJ 306 HJ 306			62					45.9	56.7			5	1.1			1.1		37					64			1		1
	72			19			49.2			48.2			8000			10000					0.377	N306E					—	—			62.5					45	—			—	1.1			1.1		37					64			1		1
	72			27			46.5			47.5			8000			10000					0.6	—					NF2306	—			62					45.9	56.7			—	1.1			1.1		37					64			1		1
	72			27			70.0			75.5			8000			10000					0. 538	N 2306 E					—	—			62.5					45	—			—	1.1			1.1		37					64			1		1
	90			23			57.2			53.0			7000			9000					0. 73	N406					—	NJ 406 HJ 406			73					50.5	65.3			7	1.5			1.5		39					—			1.5		1.5
35	72			17			28.5			28.0			7500			9500					0.3	—					NF207	NJ 207 HJ 207			61.8					47.6	56.8			4	1.1			0.6		42					64			1		0.6
	72			17			46.5			48.0			7500			9500					0.311	N207E					—	—			64					48.3	—			—	1.1			0.6		42					64			1		0.6
	72			23			43.8			48.5			7500			9500					0.45	—					—	HJ 2207 HJ 2207			—					47.6	56.8			4	1.1			0.6		42					—			1		0.6
	72			23			57.5			63.0			7500			9500					0.414	N2207E					—	—			64					48.3	—			—	1.1			0.6		42					64			1		0.6
	80			21			41.0			39.2			7000			9000					0. 56	—					NF307	NJ 307 HJ 307			63.2					50.3	62.4			6				1.1		44					71					1
	80			21			62.0			63.2			7000			9000					0. 501	N307E					—	—			70.2					51.1	—			—	1.5			1.1		44					71			1.5		1
	80			31			54.3			57.0			7000			9000					0. 85	—					NF2307	—			—					50.3	62.4			—	1.5			1.1		44					71			1.5		1
	80			31			87.5			98.2			7000			9000					0. 738	N2307E					—	—			70.2					51.5	—			—	1.5			1.1		44					71			1.5		1
	100			25			70.8			68.2			6000			7500					0. 94	N407					—	NJ 407 HJ 407			S3					59	75.3			3	1.5			1.5		44					—			1.5		1.5
40	68			15			21.2			22.0			7500			9500					0.22	N1008					—	—			61					50.3	—			—				0.6		45					—			1		0.6
	80			18			37.5			38.2			7000			9000					0.4	—					NF208	NJ 203 HJ 203			70					54.2	64.7			5	1.1			1.1		47					72			1		1
	80			18			51.5			53.0			7000			9000					0. 394	N208E					—	—			71.5					54.2	—			—	1.1			1.1		47					72			1		1
	80			23			52.0			57.8			7000			9000					0. 53	—					—	NJ 2208 HJ 2208			—					54.2	64.7			5	1.1			1.1		47					—			1		1
	80			23			67.5			75.2			7000			9000					0. 507	N 2208 E					—	—			71.5					54.2	—			—	1.1			1.1		47					72			1		1
	90			23			48.8			47.5			6300			8000					0.7	—					NF308	NJ 303 HJ 303			77.5					58.4	71.2			7	1.5			1.5		49					80			1.5		1.5
	90			23			76.8			77.8			6300			8000					0. 63	N308E					—	—			80					57.7	—			—	1.5			1.5		49					80			1.5		1.5
	90			33			70.8			76.8			6300			8000					1.1	—					NF2308	—			77.5					58.4	71.2			—	1.5			1.5		49					80			1.5		1.5
	90			33			105			113			6300			8000					0. 974	N2308E					—	—			80					57.7	—			—	1.5			1.5		49					80			1.5		1.5
	110			27			90.5			89.8			5600			7000					1.25	N408					—	NJ 403 HJ 403			92					64.8	83.3			3	2			2		50					—			2		2
45		85			19			39.8			41.0			6300			3000		0.5				—		NF209				NJ 209 HJ 209			75		59				69.7		5		1.1			1.1		52		77			1				1
		85			19			58.5			63.3			6300			3000		0.45				N209E		—				—			76.5		59.2				—		—		1.1			1.1		52		77			1				1
		85			23			54.3			62.2			6300			3000		0. 59				—		—				NJ 2209 HJ 2209			—		59				69.7		5		1.1			1.1		52		—			1				1
		85			23			71.0			82.0			6300			3000		0.55				N 2209 E		—				—			76.5		59.2				—		—		1.1			1.1		52		77			1				1
		100			25			66.8			66.8			5600			7000		0.9				—		NF309				NJ 309 HJ 309			36.5		64				79.3		7		1.5			1.5		54		89			1.5				1.5
		100			25			93.0			98.0			5600			7000		0. 93				N309E		—				—			88.5		64.7				—		—		1.5			1.5		54		89			1.5				1.5
		100			36			91.5			100			5600			7000		1.5				—		NF2309				—			36.5		64				79.6		—		1.5			1.5		54		89			1.5				1.5
		100			36			130			152			5600			7000		1.34				N 2309 E		—				—			88.5		64.7				—		—		1.5			1.5		54		89			1.5				1.5
		120			29			102			100			5000			6300		1.8				N409		—				NJ 409 HJ 409			100.5		71.8				91.4		3		2			2		55		—			2				2
50		80			16			25.0			27.5			6300			3000		—				N1010		—				—			72.5		—				—		—		1			0.6		55		—			1				0.6
		90			20			43.2			48.5			6000			7500		0.6				—		NF210				NJ210 HJ210			30.4		64.6				75.1		5		1.1			1.1		57		83			1				1
		90			20			61.2			69.2			6000			7500		0. 505				N210E		—				—			31.5		64.2				—		—		1.1			1.1		57		83			1				1
		90			23			57.2			69.2			6000			7500		0. 65				—		—				NJ2210 HJ2210			—		64.6				75.1		5		1.1			1.1		57		—			1				1
		90			23			74.2			33.3			6000			7500		0. 59				N2210E		—				—			31.5		64.2				—		—		1.1			1.1		57		83			1				1
		110			27			76.0			79.5			5300			6700		1.2				—		NF310				NJ310 HJ310			95		71				87.3		3		2			2		60		98			2				2
		110			27			105			112			5300			6700		1.2				N310E		—				—			97		71.2				—		—		2			2		60		98			2				2
		110			40			112			132			5300			6700		1.85				—		NF2310				NJ2310 H J2310			95		71				87.3		3		2			2		60		98			2				2
		110			40			155			185			5300			6700		1.79				N2310E		—				—			97		71.2				—		—		2			2		60		98			2				2
		130			31			120			120			4800			6000		2.3				N410		—				NJ410 HJ410			110.3		78.8				101		9		2.1			2.1		62		—			2.1				2.1
55		90			18			35.8			40.0			5600			7000		0.45				N1011		—				—			31.5		—				—		—		1.1			1		61.5		—			1				1
		100			21			52.8			60.2			5300			6700		0.7				—		NF211				NJ211 HJ211			88.5		70.8				82.7		6		1.5			1.1		64		91			1.5				1
		100			21			80.2			95.5			5300			6700		0. 63				N211E		—				—			90.0		70.2				—		—		1.5			1.1		64		91			1.5				1
		100			25			70.8			87.5			5300			6700		0. 36				—		—				NJ 2211 HJ 2211			—		70.8				82.7		6		1.5			1.1		64		—			1.5				1
		100			25			94.3			113			5300			6700		0.31				N2211E		—				—			90		70.9				—		—		1.5			1.1		64		91			1.5				1
		120			29			97.8			105			4800			6000		1.7				—		NF311				NJ311 HJ311			104.5		77.2				95.3		9		2			2		65		107			2				2
		120			29			128			138			4800			6000		1.53				N311E		—				—			106.5		77.4				—		—		2			2		65		107			2				2
		120			43			130			148			4800			6000		2.4						NF2311				NJ 2311 HJ 2311			104.5		77.2				95.3		9		2			2		65		107			2				2
		120			43			190			228			4800			6000		2.28				N2311E		—				—			106.5		77.4				—		—		2			2		65		107			2				2
		140			33			128			132			4300			5300		2.8				N411		—				NJ 411 HJ 411			117.2		85.2				108		10		2.1			2.1		67		—			2.1				2.1
60		95			18			38.5			45.0			5300			6700		0.48				N1012		—				—			36.5		72.9				—		—		1.1			1		66.5		—			1				1
		110			22			62.8			73.5			5000			6300		0.9				—		NF212				NJ 212 HJ 212			97		—				—		6		1.5			1.5		69		100			1.5				1.5
		110			22			89.8			102			5000			6300		0. 86				N212E		—				—			100		77.7				—		—		1.5			1.5		69		100			1.5				1.5
		110			28			91.2			113			5000			6300		1.25				—		—				NJ 2212 HJ 2212			—		—				—		6		1.5			1.5		69		—			1.5				1.5
		110			28			112			152			5000			6300		1.12				N2212E		—				—			100		77.7				—		—		1.5			1.5		69		100			1.5				1.5
		130			31			113			128			4500			5600		2				—		NF312				NJ312 HJ312			113		84.2				104		9		2.1			2.1		72		116			2.1				2.1
		130			31			142			155			4500			5600		1.87				N312E		—				—			115		84.3				—		—		2.1			2.1		72		116			2.1				2.1
		130			46			155			195			4500			5600		2				—		NF2312				NJ2312 HJ2312			113		84.2				104		9		2.1			2.1		72		116			2.1				2.1
		130			46			212			260			4500			5600		2.81				N2312E		—				—			115		84.3				—		—		2.1			2.1		72		116			2.1				2.1
		150			35			155			162			4000			5000		3.4				N412		—				NJ412 HJ412			127		91.8				116		10		2.1			2.1		72		—			2.1				2.1
65		120			23			73.2			87.5			4500			5600		1.1				—		NF213				NJ213 HJ213			105.5		84.8				98.9		6		1.5			1.5		74		103			1.5				1.5
		120			23			102			113			4500			5600		1.08				N213E		—				—			108.5		84.6				—		—		1.5			1.5		74		103			1.5				1.5
		120			31			108			145			4500			5600		—				—		—				NJ2213 HJ2213			—		84.8				98.6		6		1.5			1.5		74		—			1.5				1.5
		120			31			142			180			4500			5600		1.48				N2213E		—				—			108.5		84.6				—		—		1.5			1.5		74		103			1.5				1.5
		140			33			125			135			4000			5000		2.5				—		NF313				NJ313 HJ313			121.5		91				112		10			2.1		2.1	77		125			2.1				2.1
		140			33			170			183			4000			5000		2.31				N313E		—				—			124.5		90.6				—		—			2.1		2.1	77		125			2.1				2.1
		140			48			175			210			4000			5000		4				—		NF2313				NJ2313 HJ2313			121.5		91				112		10			2.1		2.1	77		125			2.1				2.1
		140			48			235			285			4000			5000		3.34				N2313E		—				—			124.5		90.6				—		—			2.1		2.1	77		125			2.1				2.1
		160			37			170			178			3800			4800		4				N413		—				NJ413 HJ413			135.3		98.5				124		11			2.1		2.1	77		—			2.1				2.1
70		110			20			47.5			57.0			4800			6000		0.71				N1014		—				—			100		84.5				—		—			1.1		1	76.5		—			1
		125			24			73.2			87.5			4300			5300		1.3				—		NF214				NJ214 HJ214			110.5		89.6				104		7			1. 5		1.5	79		114			1.5				1.5
		125			24			112			135			4300			5300		1.2				N214E		—				—			113.5		89.6				—		—			1. 5		1.5	79		114			1.5				1.5
		125			31			108			145			4300			5300		1.7				—		—				NJ 2214 HJ 2214			—		89.6				104		7			1. 5		1.5	79		—			1.5				1.5
		125			31			148			192			4300			5300		1.56				N 2214 E		—				—			113.5		89.6				—		—			1. 5		1.5	79		114			1.5				1.5
		150			35			145			162			3800			4800		3.1				—		NF314				NJ314 HJ314			130		98				120		10			2.1		2.1	82		134			2.1				2.1
		150			35			195			220			3800			4800		2. 86				N314E		—				—			133		97.5				—		—			2.1		2.1	82		134			2.1				2.1
		150			51			212			260			3800			4800		4.4				—		NF2314				NJ2314 HJ2314			130		98				120		10			2.1		2.1	82		134			2.1				2.1
		150			51			260			320			3800			4800		4.1				N2314E		—				—			133		97.5				—		—			2.1		2.1	82		134			2.1				2.1
		180			42			215			232			3400			4300		5.9				N414		—				NJ414 HJ414			152		110				139		12			3		3	84		—			2.5				2.5
75		130			25			89.0			110			4000			5000				1.4		—		N215				NJ215 HJ215			118.3		94				110		7			1.5		1.5	84				120			1.5		1.5
		130			25			125			155			4000			5000				1.32		N215E		—				—			118.5		94.6				—		—			1.5		1.5	84				120			1.5		1.5
		130			31			125			165			4000			5000				1.8		—		—				NJ2215 HJ2215			—		94				110		7			1.5		1.5	84				—			1.5		1.5
		130			31			155			205			4000			5000				1.64		N2215E		—				—			118.5		94.6				—		—			1.5		1.5	84				120			1.5		1.5
		160			37			165			183			3600			4500				3.7		—		NF315				NJ315 HJ315			139.5		104				129		11			2.1		2.1	87				143			2.1		2.1
		160			37			228			260			3600			4500				3.43		N315E		—				—			143		104.2				—		—			2.1		2.1	87				143			2.1		2.1
		160			55			245			308			3600			4500				5.4		N2315		NF2315				NJ2315 HJ2315			142.1		104				129		11			2.1		2.1	87				143			2.1		2.1
		190			45			250			272			3200			4000				7.1		N415		—				NJ415 HJ415			160.5		116				147		13			3		3	89				—			2.5		2.5
80		125			22			59.2			77.8			4300			5300				1		N1016		—				—			113.5		—				—		—			1.1		1	86.5				—			1		1
		140			26			102			125			3800			4800				1.7		—		NF216				NJ216 HJ216			125		101				113		8			2		2	90				128			2		2
		140			26			132			165			3800			4800				1.58		N216E		—				—			127.3		101.1				—		—			2		2	90				128			2		2
		140			33			145			195			3800			4800				2.2		—		—				NJ2216 HJ2216			—		101				113		8			2		2	90				—			2		2
		140			33			178			242			3800			4800				2.05		N2216E		—				—			127.3		101.1				—		—			2		2	90				128			2		2
		170			39			175			200			3400			4300				4.4		—		NF316				NJ316 HJ316			147		111				136		11			2.1		2.1	92				151			2.1		2.1
		170			39			245			282			3400			4300				4.05		N316E		—				—			151		110.1				—		—			2.1		2.1	92				151			2.1		2.1
		170			58			258			328			3400			4300				6.4		N2316		NF2316				NJ2316 HJ2316			147		111				136		11			2.1		2.1	92				151			2.1		2.1
		200			48			285			315			3000			3800				8.3		N416		—				NJ416 HJ416			170		122				156		13			3		3	94				—			2.5		2.5
		150			28			115			145			3600			4500				2.1		—		NF217				NJ217 HJ217			135.5		108				126		8			2		2	95				137			2		2
		150			28			158			192			3600			4500				2		N217E		—				—			136.5		107.1				—		—			2		2	95				137			2		2
		150			36			165			230			3600			4500				2.3		—		—				N2217 HJ2217			—		108				126		8			2		2	95				—			2		2
85		150			36			205			272			3600			4500				2.58		N2217E		—				—			136.5		107.1				—		—			2		2	95				137			2		2
		180			41			212			242			3200			4000				5.2		—		NF317				NJ317 HJ317			156		117				144		12			3		3	99				160			2.5		2.5
		180			41			280			332			3200			4000				4. 82		N317E		—				—			160		117.4				—		—			3		3	99				160			2.5		2.5
		180			60			295			380			3200			4000				7.4		N2317		NF2317				NJ2317 HJ2317			156.5		117				144		12			3		3	99				160			2.5		2.5
		210			52			312			345			2800			3600				9.3		N417		—				NJ417 HJ417			179.5		126				162		14			4		4	103				—			3		3
90		140			24			74.0			94.8			3800			4800	1.36					N1013		—				—			127		—				—		—			1.5		1.1	93				—			1.5		1
		160			30			142			178			3400			4300	2.5					—		NF218				NJ218 HJ213			143		114				134		9			2		2	100				146			2		2
		160			30			172			215			3400			4300	2.44					N218E		—				—			145		113.9				—		—			2		2	100				146			2		2
		160			40			192			268			3400			4300	3.5					—		—				NJ2218 HJ2218			—		114				134		9			2		2	100				—			2		2
		160			40			230			312			3400			4300	3.26					N2213E		—				—			145		113.9				—		—			2		2	100				146			2		2
		190			43			228			265			3000			3800	6.1					—		NF318				NJ318 HJ313			165		125				153		12			3		3	104				169			2.5		2.5
		190			43			298			348			3000			3800	5.59					N318E		—				—			169.5		123.7				—		—		3			3		104				169			2.5		2.5
		190			64			310			395			3000			3800	8.4					N2313		NF2138				NJ2318 HJ2318			165		125				153		12		3			3		104				169			2.5		2.5
		225			54			352			392			2400			3200	11					N418		—				NJ418 HJ413			191.5		137				175		14		4			4		108				—			3		3
95		170			32			152			190			3200			4000	3.2					—		NF219				NJ219 HJ219			151.5		121				142		9		2.1			2.1		107				155			2.1		2.1
		170			32			208			262			3200			4000	2.96					N219E		—				—			154.5		120.2				—		—		2.1			2.1		107				155			2.1		2.1
		170			43			215			298			3200			4000	4.5					—		—				NJ2219 HJ2219			—		121				142		9		2.1			2.1		107				—			2.1		2.1
		170			43			275			368			3200			4000	3.97					N2219E		—				—			154.5		120.2				—		—		2.1			2.1		107				155			2.1		2.1
		200			45			245			288			2800			3600	7					—		NF319				NJ319 HJ319			173.5		132				163		13		3			3		109				173			2.5		2.5
		200			45			315			380			2800			3600	6. 52					N319E		—				—			177.5		131.7				—		—		3			3		109				173			2.5		2.5
		200			67			370			500			2800			3600	10.4					N2319		NF2319				NJ2319 HJ2319			173.5		132				161		13		3			3		190				173			2.5		2.5
		240			55			378			428			2200			3000	14					N419		—				NJ419 HJ419			201.5		147				185		15		4			4		113				—			3		3
100		150			24			78.0			102			3400			4300	1.5					N1020		—				—			137		—				—		—		1.5			1.1		108				—			1.5		1
		180			34			168			212			3000			3800	3.5					—		NF220				NJ 220 HJ 220			160		128				150		10		2.1			2.1		112				164			2.1		2.1
		180			34			235			302			3000			3800	3.58					N220E		—				—			163		127				—		—		2.1			2.1		112				164			2.1		2.1
		180			46			240			335			3000			3800	5.2					—		—				NJ 2220 HJ 2220			—		128				150		10		2.1			2.1		112				—			2.1		2.1
		180			46			313			440			3000			3800	4. 86					N 2220 E		—				—			163		127				—		—		2.1			2.1		112				164			2.1		2.1
		215			47			282			340			2600			3200	8.6					—		NF320				NJ 320 HJ 320			185.5		140				172		13		3			3		114				190			2.5		2.5
		215			47			365			425			2600			3200	7. 39					N320E		—				—			191.5		139.1				—		—		3			3		114				190			2.5		2.5
		215			73			415			558			2600			3200	13.5					N2320		NF2320				NJ 2320 HJ 2320			185.5		140				172		13		3			3		114				190			2.5		2.5
		250			58			413			480			2000			2800	16					N420		—				NJ 420 HJ 420			211		153				194		16		4			4		113				—			3		3
105		160			26			91.5			122			3200			4200	1.9					N1021		—				—			145.5		125.5				—		—			2	1.1		114				—			2		1
		190			36			185			235			2800			3600	4					N221		NF221				NJ 221 HJ 221			163.3		135				159		10			2.1	2.1		117				173			2.1		2.1
		225			49			322			392			2200			3000	—					N321		NF321				NJ 321 HJ 321			196		147				181		13			3	3		119				199			2.5		2.5
		260			60			508			602			1900			2600	—					N421		—				NJ421-HJ421			220.5		159				202		16			4	4		123				—			3		3
110		170			28			115			155			3000			3800	2.3					N1022		—				—			155		131				—		—			2	1.1		119				—			2		1
		200			38			220			285			2600			3400	5					—		NF222				NJ 222 HJ 222			178.5		141				167		11			2.1	2.1		122				182			2.1		2.1
		200			38			278			360			2600			3400	5.02					N222E		—				—			180.5		141.3				—		—			2.1	2.1		122				182			2.1		2.1
		200			53			312			445			2600			3400	7.5					N2222		NF2222				NJ 2222 HJ 2222			178.5		141				167		11			2.1	2.1		122				—			2.1		2.1
		240			50			352			428			2000			2800	11					N322		NF322				NJ 322 HJ 322			207		155				192		14			3	3		124				211			2.5		2.5
		240			80			535			740			2000			2800	7.5					N2322		NF2322				NJ 2322 HJ 2322			207		155				201		14			3	3		124				211			2.5		2.5
		280			65			515			602			1800			2400	22					N422		—				NJ 422 HJ 422			230.5		171				216		17			4	4		128				—			3		3
120		180			28			130			168			2600			3400	2.96					N1024		—				—			165		156				—		—			2	1.1		129				—			2		1
		215			40			230			332			2200			3000	6.4					—		NF224				NJ 224 HJ 224			191.5		153				180		11			2.1	2.1		132				196			2.1		2.1
		215			40			322			422			2200			3000	6.11					N224E		—				—			195.5		153				—		—			2.1	2.1		132				196			2.1		2.1
		215			58			345			522			2200			3000	9.5					N2224		—				NJ 2224-HJ 2224			191.5		153				180		11			2.1	2.1		132				—			2.1		2.1
		260			55			440			552			1900			2600	14					N324		NF324				NJ 324 HJ 324			226		163				209		14			3	3		134				230			2.5		2.5
		260			S6			632			868			1900			2600	22.5					N2324		NF2324				NJ 2324-HJ 2324			226		163				219		14			3	3		134				230			2.5		2.5
		310			72			642			772			1700			2200	30					N424		—				NJ 424 HJ 424			260		188				238		17			5	5		142				—			4		4
130		200			33			152			212			2400			3200	3.7					N1026		—				—			182		156				—		—			2	1.1		139				—			2		1
		230			40			258			352			2000			2800	7					N226		NF226				NJ 226 HJ 226			204		165				192		11			3	3		144				203			2.5		2.5
		230			64			368			552			2000			2800	11.5					N2226		NF2226				NJ 2226 HJ 2226			204		167				195		11			3	3		144				—			2.5		2.5
		280			58			492			620			1700			2200	18					N326		NF326				NJ 326 HJ 326			243		182				225		14			4	4		148				247			3		3
		280			93			748			1060			1700			2200	28.5					N2326		N F2326				NJ 2326 HJ 2326			243		182				236		14			4	4		148				247			3		3
		340			78			782			942			1500			1900	39					N426		—				NJ 426 HJ 426			289		—				—		18			5	5		152				—			4		4
140		210			33			158			220			2000			2800	4					N1028				—		—			192				—		—		—			2	1.1		149				—				2	1
		250			42			302			415			1800			2400	9.1					N228				NF228		NJ 228 HJ 228			221				179		208		11			3	3		154				—				2.5	2.5
		250			63			438			700			1800			2400	15					N2228				—		NJ 2228 HJ 2228			221				179		208		11			3	3		154				—				2.5	2.5
		300			62			545			690			1600			2000	22					N328				NF328		NJ 328 HJ 328			260				196		241		15			4	4		158				—				3	3
		300			102			825			1180			1600			2000	37					N2328				NF2328		NJ 2328 HJ 2328			260				192		252		15			4	4		158				—				3	3
		360			82			845			1020			1400			1800	—					N428				—		NJ 428 HJ 428			304				—		—		18			5	5		162				—				4	4
150		225			35			183			268			1900			2600	4.3					N1030				—		—			206.5				177		—		—			2.1	1.5		161				—				2.1	1.5
		270			45			360			490			1700			2200	11					N230				NF230		NJ 230 HJ 230			238				193		225		12			3	3		164				—				2.5	2.5
		270			73			530			772			1700			2200	17					N2230				NF2230		NJ 2230 HJ 2230			238				193		225		12			3	3		164				—				2.5	2.5
		320			65			595			765			1500			1900	26					N330				NF330		NJ 330 HJ 330			277				209		270		15			4	4		163				—				3	3
		320			108			930			1340			1500			1900	45					N2330				NF2330		NJ 2330 HJ 2330			277				209		270		15			4	4		163				—				3	3
		380			85			912			1100			1300			1700	53					N430				—		NJ 430 HJ 430			321				—		—		20			5	5		172				—				4	4
160		240			38			212			302			1800			2400	6					N1032				—		—			220				—		—		—			2.1	1.5		171				—				2.1	1.5
		290			48			405			552			1600			2000	14					N232				NF232		NJ 232 HJ 232			257				206		250		12			3	3		174				—				2.5	2.5
		290			80			590			898			1600			2000	25					N2232				—		NJ 2232-HJ 2232			257				205		252		12			3	3		174				—				2.5	2.5
		340			63			628			825			1400			1800	31.6					N332				NF332		NJ 332 HJ 332			292				—		—		—			4	4		178				—				3	3
		340			114			972			1430			1400			1800	55.8					N2332				NF2332		—			—				—		—		—			4	4		178				—				3	3
170		260			42			255			365			1700			2200	8.14					N1034				—		—			238				201		—		—			2.1	2.1		181				—				2.1	2.1
		310			52			425			650			1500			1900	17.1					N234				NF234		NJ 234 HJ 234			272				220		269		12			4	4		188				—				3	3
		360			72			715			952			1300			1700	36					N334				—		—			310				—		—		—			4	4		188				—				3	3
		360			120			1110			1650			1300			1700	63					N2334				NF2334		—			310				—		290		—			4	4		188				—				3	3
180		280			46			300			438			1600			2000	10.1					N1036				—		—			255				215		—		—			2.1	2.1		191				—				2.1	2.1
		320			52			425			650			1400			1800	18					N236				—		NJ 236-HJ 236			282				230		279		12			4	4		198				—				3	3
		380			75			835			1100			1200			1600	42					N336				—		—			328				252		—		—			4	4		198				—				3	3
		380			126			1210			1780			1200			1600	71.2					N2336				NF2336		—			330				—		306		—			4	4		198				—				3	3
190		290			46			335			495			1500			1900	10.0					N1038				—		—			—				225		—		—			2.1	2.1		201				—				2.1	2.1
		340			55			512			745			1300			1700	23					N238				—		NJ 238 HJ 233			299				244		295		13			4	4		208				—				3	3
		340			92			975			1570			1300			1700	33.5					N2238				—		NJ 2238 HJ 2238			299				—		295		13			4	4		208				—				3	3
		400			78			332			1190			1100			1500	50					N338				—		—			345				264		—		—			5	5		212				—				4	4
200		310			51			408			615			1400			1800	14.3					N1040				—		—			283				239		—		—		2.4			2.4		211				—				2.1	2.1
		360			58			570			842			1200			1600	26					N240				—		NJ 240^HJ 240			316				258		312		14		4			4		218				—				3	3
		360			98			1120			1725			1200			1600	—					N2240				—		NJ 2240 HJ 2240			316				256		313		14		4			4		218				—				3	3
		420			80			972			1290			1000			1400	—					N340				—		—			—				280		—		—		5			5		222				—				4	4
220		340			56			448			635			1200			1600	—					N1044				—		—			—				—		—		—		3			3		233				—				2.5	2.5
		400			65			702			1050			1000			1400	36					N244				—		NJ 244 HJ 244			350				286		332		15		4			4		238				—				3	3
		400			108			1360			2330			1000			1400	62					N2244				—		—			350				—		—		—		4			4		238				—				3	3
240		360			56			470			745			1000			1400	21					N1048				—		—			330				282		—		—		3			3		253				—				2.5	2.5
		440			72			330			1345			900			1200	43.2					N248				—		NJ 248 HJ 243			385				313		365		16		4			4		258				—				3	3
		500			95			1290			1810			800			1000	97.1					N348				—		—			430				—		—		—		5			5		262				—				4	4
260		400			65			592			932			950			1300	31					N1052				—		—			369.6				309		—		—		4			4		276				—				3	3
280		420			65			600			965			850			1100	33					N1056				—		—			384				329		—		—		4			4		296				—				3	3
300		460			74			330			1470			800			1000	44.4					N1060				—		—			420				356		—		—		4			4		316				—				3	3
		540			85			1360			2190			700			900	87.2					N260				—		—			475				—		—		—		5			5		322				487				4	4
320		480			74			890			1520			750			950	47					N1064				—		—			440				376		—		—		4			4		336				—				3	3
400		600			90			1420			2480			560			700	88.8					N1080				—		—			552				470		—		—		5			5		420				—				4	4

Mengenai FTM

Shaoxing Shangyu Flight Seiko Machinery Co., Ltd.

"Berputar ke dalam keabadian, warisi kecemerlangan, dan cipta masa depan bersama-sama."

Shaoxing Shangyu Flight Seiko Machinery Co., Ltd. (FTM), yang ditubuhkan pada tahun 2006, ialah sebuah perusahaan yang memfokuskan pada R&D, pembuatan dan penyesuaian galas bukan standard, galas berketepatan tinggi (penggantian import), dan aksesori galas dan mekanikal bahagian. Dengan lebih daripada 30 tahun pengalaman reka bentuk teknikal, FTM telah memperoleh reputasi yang sangat baik dalam bidang galas berkualiti tinggi. Pasukan teknikal profesional kami menyediakan pelanggan domestik dan asing dengan penyelesaian galas berkualiti tinggi dalam jentera kejuruteraan, jentera tekstil dan bidang lain.

Bergantung pada pengilangan profesional dan kemahiran teknikal selama bertahun-tahun, FTM secara aktif memperkenalkan alat mesin CNC termaju dari Jepun untuk memastikan ketepatan dan kestabilan pemprosesan produk. Selain itu, penyelidikan produk galas FTM dipandu oleh doktor tribologi. Kami mematuhi falsafah korporat inovasi dan pembangunan, dan produk kami dieksport ke banyak negara dan wilayah di seluruh dunia. Kami telah lama menyokong dan menghasilkan pelbagai jenis galas untuk banyak syarikat terkenal dunia, mengekalkan hubungan pengeluaran yang baik. Berputar ke dalam keabadian, warisi kecemerlangan, dan cipta masa depan bersama. Pilih FTM, dan kami akan menjadi pilihan terbaik anda untuk penyelesaian galas.

Pensijilan industri profesional

Komitmen Kepada Kualiti Unggul

Lihat lagi

Sistem Pengurusan kualiti
Sistem Pengurusan kualiti
Laporan Pensijilan
Sijil Paten Praktikal
Sijil Paten Praktikal
Sijil Paten Praktikal
Sijil Paten Praktikal

Berita dan Blog

2025-04-27 Berita Industri
Mengapa pengeluar memilih galas penggelek cam ke atas galas tradisional?
1. Inovasi Reka Bentuk Struktur: Terobosan Double Of Cincin Luar Luar dan Pengedap Luar Berdandakan Tebal Galas roller cam mengamalkan reka bentuk ci...
2025-04-15 Berita Industri
Bagaimana untuk memilih galas bola hubungan sudut yang betul untuk keperluan aplikasi tertentu?
1. Hubungi Pilihan Sudut: mengimbangi beban dan kelajuan Sudut kenalan adalah parameter penentuan galas bola hubungan sudut, secara langsung mempenga...
2025-03-14 Berita Industri
Apakah perbezaan antara galas roller dan galas bola?
1. Mekanik Hubungi dan Pengagihan Beban Galas bola : Menggunakan unsur -unsur rolling sfera yang membuat hubungan titik dengan raceways. Ini me...
2025-01-23 Berita Industri
Perkara utama untuk memasang galas bebola sentuhan sudut
1. Persediaan awal: Sebelum memasang galas bebola sentuhan sudut, pastikan dahulu persekitaran kerja bersih untuk mengelakkan habuk dan kekotoran lai...
2024-12-27 Berita Industri
Cara Mendiagnosis dan Menyelesaikan Masalah Galas Bebola Bising
1. Punca Biasa Bunyi Dalam Galas Bebola Memahami punca utama bunyi bising adalah langkah pertama dalam menyelesaikan isu tersebut. Bunyi dalam galas ...

Menu Web

Carian Produk

Bahasa

Menu Keluar

Galas Gelek silinder Baris Tunggal

Melukis

Spesifikasi

Komitmen Kepada Kualiti Unggul

Sistem Pengurusan kualiti

Sistem Pengurusan kualiti

Laporan Pensijilan

Sijil Paten Praktikal

Sijil Paten Praktikal

Sijil Paten Praktikal

Sijil Paten Praktikal

Sebelum anda mula membeli-belah

Menu Web

Carian Produk

Bahasa

Kongsi

Menu Keluar

Galas Gelek silinder Baris Tunggal

Galas Gelek silinder Baris Tunggal

Melukis

Spesifikasi

Komitmen Kepada Kualiti Unggul

Sistem Pengurusan kualiti

Sistem Pengurusan kualiti

Laporan Pensijilan

Sijil Paten Praktikal

Sijil Paten Praktikal

Sijil Paten Praktikal

Sijil Paten Praktikal

Sebelum anda mula membeli-belah
